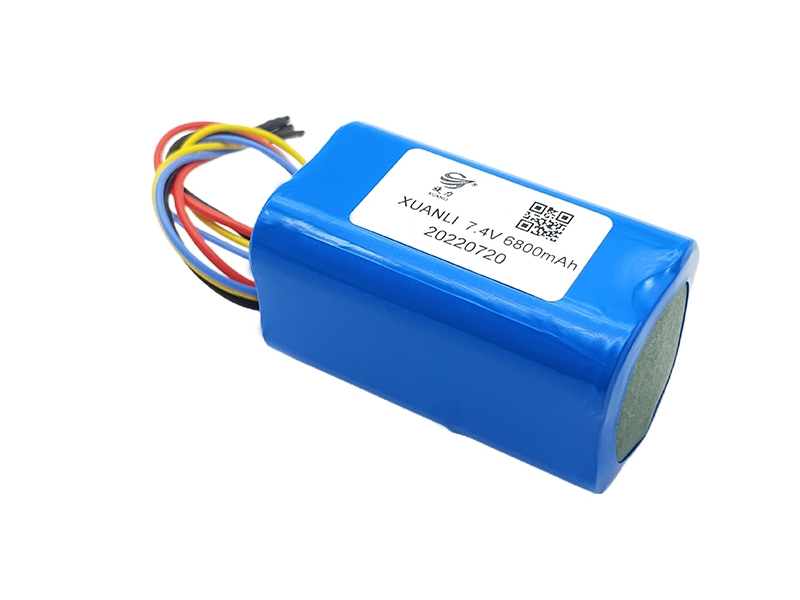

7.4V communication lithium battery Model: XL 7.4V 6800mAh
7.4V communication lithium battery technical parameters (specific design according to customer requirements - voltage/capacity/size/line)
Single battery model: 18650
· Single battery voltage: 3.7V
· Nominal voltage after battery pack combination: 7.4V
· Battery capacity: 3.4Ah
· Battery combination: 2 series 2 parallel
· Battery voltage range after combination: 5.0v-8.4v
· Combined battery capacity: 6.8ah
· Battery power: 50.32Wh
· Battery pack size: 39*39*67mm
· Maximum discharge current: <6.8A
· Instantaneous discharge current: 13A-18A
· Maximum charging current: 0.2-0.5c
· Charge and discharge times: > 500 times
· Main chips: (Seiko, TI)
7.4V cylindrical lithium battery
· Meet the relevant national battery standards and requirements
· All finished batteries are calibrated and tested before leaving the factory and can be used directly.
